Don’t buy a compressor… Go KAirFree!
KAirFree is compressed air as a service. It gives you guaranteed compressed air with no hidden costs. Instead of buying a compressor, you pay for the compressor run time. KAirFree includes all parts and labor for any needed service.
KAirFree 5

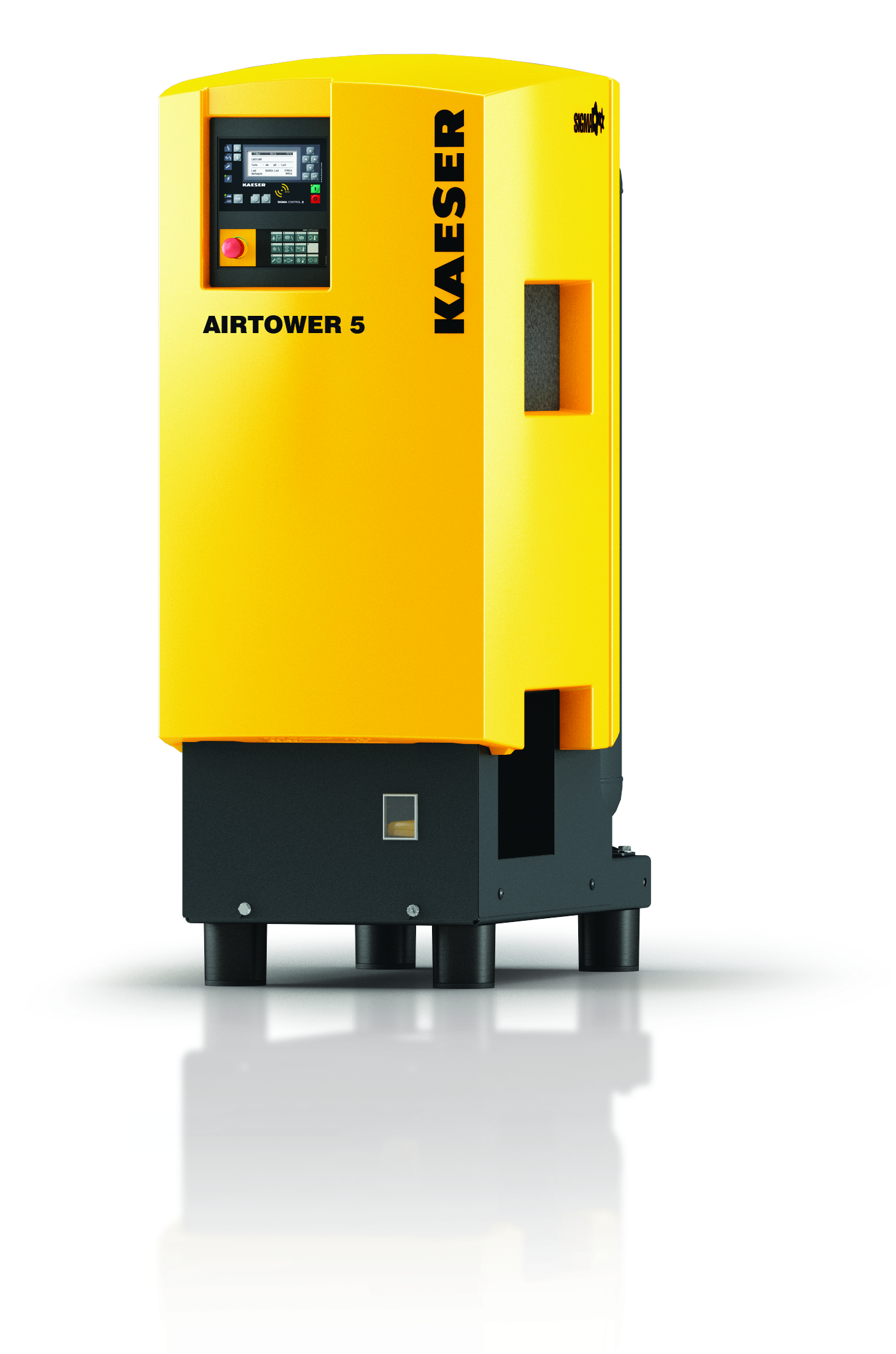

KAirFree AIRTOWER 5C
- $2,200 delivery and start-up.
- $2.30 per hour ($0.50/hour adder for single-phase power)
- 40-hour minimum per month
Benefits
- Reduced service costs
- Improved reliability
- Differentiated from purchase
- Super happy customers!
No downtime insurance
Tech Specs
Flow rate:
- 21 cfm at 125 psig
- 17 cfm at 160 psig
Nominal motor output: 5 hp
Compressed air connection: 3/4″ NPT
Sound pressure level: 70 dB(A)
Air receiver tank: 56,8 gal
Includes:
- Integrated refrigerated dryer to remove excess moisture, protect your tools, and improve product quality
- KE (Extra Fine) low-pressure drop coalescing filter
- KCF oil/water separator
- Eco-Drain 30 electric demand drain
- Ball valve and 3′ flex hose for connection to your system
- Unit filled with full-synthetic Kaeser Premium Fluid (food grade fluid is not available with KAirFree plans)
Additional Technical Specifications (per unit):
| Weight | 639 lbs |
|---|---|
| Dimensions | 38.625 x 24.325 x 58 in |
| Full Load Amps | 208V/3ph/60Hz – 15 230V/1ph/60Hz – 23 230V/3ph/60Hz – 15 460V/3ph/60Hz – 7.6 |
| Required disconnect fuse size | 208V/3ph/60Hz – 20 230V/1ph/60Hz – 40 230V/3ph/60Hz – 20 460V/3ph/60Hz – 10 |
| Required wire size (per phase and ground) | 208V/3ph/60Hz – 12 AWG 230V/1ph/60Hz – 8 AWG 230V/3ph/60Hz – 12 AWG 460V/3ph/60Hz – 14 AWG |
| Power | 3-phase (1-phase available with adder) |
* Pipe sizes should be equal to or greater than the outlet of the compressor.
$2,200.00
(Delivery and start-up fees)
KAirFree Service is available in the continental United States in areas serviced by Kaeser factory stores and authorized distributors.
